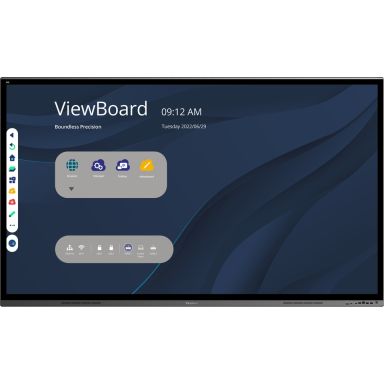

Viewsonic IFP8662 Signage Display Interactive flat panel 2.18 m (86") LED Wi-Fi 350 cd/m² 4K Ultra
In Stock
|
£4712.40
£5654.88 (Inc. VAT)
Viewsonic IFP8662 Signage Display Interactive flat panel 2.18 m (86") LED Wi-Fi 350 cd/m² 4K Ultra
Display
LED backlight
Yes
Panel type
TFT-LCD
Display number of colours
1.07 billion colours
Number of simultaneous touchpoints
20
Touchscreen
Yes
Active display area (W x H)
1895.04 x 1065.96 mm
Display technology
LED
Display diagonal
2.18 m (86")
Display resolution
3840 x 2160 pixels
Display brightness
350 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
1200:01:00
Contrast ratio (dynamic)
5000:01:00
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Native aspect ratio
16:09
Anti-glare screen
Yes
Touchscreen technology
Ultra Fine Touch (UFT)
Surface hardness
9H
Multi-touch
Yes
Ports & interfaces
USB connector type
USB Type-A, USB Type-B, USB Type-C
USB port
Yes
HDMI version
2
Wi-Fi
Yes
PC Audio out
Yes
PC Audio in
Yes
Microphone in
Yes
Digital audio optical out
1
Ethernet LAN
Yes
HDMI ports quantity
5
DVI port
No
VGA (D-Sub) input ports
1
Ethernet LAN (RJ-45) ports
2
RS-232 interface
Yes
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
9
OPS module slot
Yes
HDMI input ports quantity
4
HDMI output ports quantity
1
USB 2.0 Type-B ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery
Yes
USB Power Delivery up to
65 W
USB Type-C DisplayPort Alternate Mode
Yes
Audio
Number of built-in speakers
2
RMS rated power
24 W
Built-in speaker(s)
Yes
Design
Product design
Interactive flat panel
Placement supported
Indoor
Bezel width (top)
3.88 cm
Bezel width (side)
3.15 cm
Bezel width (bottom)
6.39 cm
Product colour
Black
Certification
cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM, Mexico Energy, EMC/CE, CB/LVD, GOST-R / EAC, UkrSEPRO, UKCA, LBL, Green BOM, RoHS, ErP, REACH, SCIP, WEEE, TPCH, CA65, PAIA
VESA mounting
Yes
Anti-glare screen
Yes
Performance
Purpose
Universal
HDCP
Yes
HDCP version
2.2
Wi-Fi
Yes
Windows operating systems supported
Yes
Power
Power consumption (max)
580 W
Power consumption (typical)
160 W
Power consumption (standby)
0.5 W
AC input voltage
100 - 240 V
Energy efficiency scale
A to G
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
200 kWh
Computer system
Computer system
Yes
Computer system type
System on Chip (SoC)
Processor cores
4
Processor frequency
1.2 GHz
Operating system installed
Android 8.0
Internal memory
3 GB
Internal storage capacity
32 GB
Windows operating systems supported
Yes
Built-in processor
Yes
Processor architecture
ARM Cortex-A73
Weight & dimensions
Display width
1960 mm
Display depth
80 mm
Display height
1171 mm
Display weight
63.7 kg
Packaging data
Package width
2113 mm
Package depth
270 mm
Package height
1290 mm
Package weight
84.2 kg
Quick start guide
Yes
Batteries included
Yes
Remote control included
Yes
Mounting kit
Yes
Manual
Yes
Cables included
HDMI, Power, RS-232, USB Type-C
Stylus pen
Yes
Number of stylus pens
2
Packaging content
Quick start guide
Yes
Batteries included
Yes
Remote control included
Yes
Mounting kit
Yes
Manual
Yes
Cables included
HDMI, Power, RS-232, USB Type-C
Stylus pen
Yes
Number of stylus pens
2
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Certificates
Certification
cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM, Mexico Energy, EMC/CE, CB/LVD, GOST-R / EAC, UkrSEPRO, UKCA, LBL, Green BOM, RoHS, ErP, REACH, SCIP, WEEE, TPCH, CA65, PAIA
Technical details
VESA mounting
Yes
USB connector type
USB Type-A, USB Type-B, USB Type-C
Panel type
TFT-LCD
Number of simultaneous touchpoints
20
OPS slot
1
Thin Client
Processor frequency
1.2 GHz
Operating system installed
Android 8.0
Internal memory
3 GB
Internal storage capacity
32 GB
Other features
USB connector type
USB Type-A, USB Type-B, USB Type-C
Panel type
TFT-LCD
Number of simultaneous touchpoints
20
Wi-Fi
Yes
USB 2.0 ports quantity
1
Subwoofer RMS power
15 W
Power consumption (max)
580 W
PC Audio out
Yes
Mobile operating systems supported
Android
Microphone in
Yes
Display technology
LED
Digital audio optical out
1
Built-in subwoofer
Yes
Built-in microphone
Yes
Bezel width (top)
3.88 cm
Bezel width (side)
3.15 cm
Bezel width (bottom)
6.39 cm
Quick start guide
Yes
Manual
Yes
Windows operating systems supported
Yes
Stylus pen
Yes
Number of stylus pens
2
Energy efficiency scale
A to G
OPS module slot
Yes
