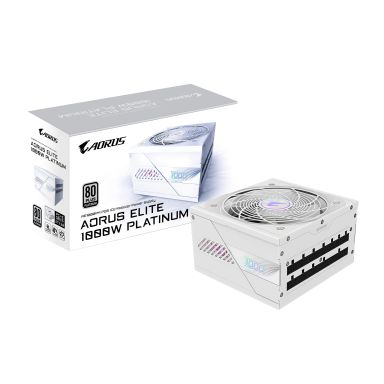

GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug
In Stock
|
£114.33
£137.20 (Inc. VAT)
GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Platinum
Purpose
PC
ATX version
3.1
Mean time between failures (MTBF)
100000 h
Bearing technology
Ball bearing
Design
80 PLUS certification
80 PLUS Platinum
Product colour
White
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Power
Total power
1000 W
Power Good signal delay range
100 - 150 ms
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
15 - 6.5 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
999.6 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
83.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time
16 ms
Efficiency
92%
Ports & interfaces
Motherboard power cable length
65 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
4
PCI Express power connectors (6+2 pin)
6
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
Floppy drive power connector
2
Floppy disk drive connector
Yes
ATX power connector (20+4 pin)
Yes
Cabling type
Fully-Modular
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
3.1 kg
Packaging data
Package depth
206 mm
Package width
340 mm
Package height
120 mm
Package type
Box
Package weight
3.73 kg
Technical details
Warranty period
10 year(s)
Certificates
80 PLUS certification
80 PLUS Platinum
