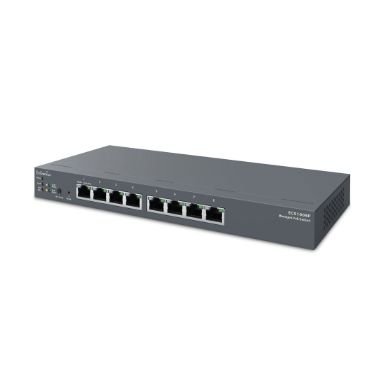

Cablenet ECS1008P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE
In Stock
|
£191.18
£229.42 (Inc. VAT)
Cablenet ECS1008P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Configuring Location Settings (CLI)
Yes
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
No
Virtual LAN features
Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Number of multicast groups filtered
256
Multicast Listener Discovery (MLD) snooping
v1
Jumbo frames
9000
Number of static routes
63
Number of IP interfaces
20
MAC address table
8000 entries
Switching capacity
16 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Technical details
Product colour
Black
Firmware upgradeable
Yes
Rack mounting
No
Security
Authentication
Port-based authentication
Security algorithms
802.1x RADIUS, SSH, SSL/TLS
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
IEEE 802.1x, RADIUS
DHCP features
DHCP relay, DHCP snooping
Multicast features
Number of multicast groups filtered
256
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
v1
Multicast features
Multicast forwarding
Protocols
Management protocols
SNMP v1/v2c/v3
Memory
Internal memory
256 MB
Flash memory
32 MB
Design
Wall mountable
Yes
Product colour
Black
LED indicators
Yes
Rack mounting
No
Performance
Internal memory
256 MB
Flash memory
32 MB
Firmware upgradeable
Yes
Harmonized System (HS) code
85176990
Indication
LED indicators
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
55 W
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
240 mm
Depth
105 mm
Height
27 mm
Weight
1.5 kg
Packaging data
Quick start guide
Yes
User guide
Yes
Cables included
AC
Logistics data
Harmonized System (HS) code
85176990
Packaging content
Quick start guide
Yes
User guide
Yes
Cables included
AC
