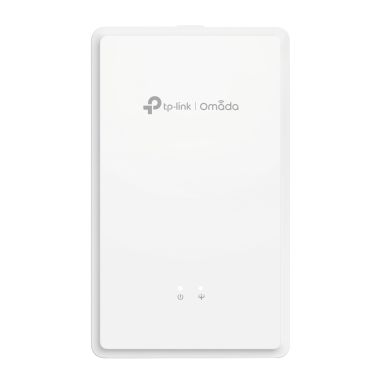

EAP615GP-WALL
In Stock
|
£95.33
£114.40 (Inc. VAT)
EAP615GP-WALL
Data transmission
Ethernet LAN data rates
1000 Mbit/s
Maximum data transfer rate
1201 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wireless isolation
Yes
Syslog
Yes
Reset button
Yes
Spread spectrum method
OFDMA
Number of users
120 user(s)
Web-based management
Yes
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates
1000 Mbit/s
Channel bandwidth
80 MHz
Certification
CE, FCC, RoHS, IC
Maximum data transfer rate
1201 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Wi-Fi roaming
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Network
Spread spectrum method
OFDMA
Number of users
120 user(s)
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bandwidth
Channel bandwidth
80 MHz
Management features
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Syslog
Yes
Web-based management
Yes
Features
6 GHz
No
2.4 GHz
Yes
5 GHz
Yes
Wireless isolation
Yes
Spread spectrum method
OFDMA
Number of users
120 user(s)
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates
1000 Mbit/s
Channel bandwidth
80 MHz
Maximum data transfer rate
1201 Mbit/s
Transmitting power (FCC)
21 dBm
Transmitting power (CE)
20 dBm
MIMO type
Multi User MIMO
MIMO
Yes
Wi-Fi roaming
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1201 Mbit/s
BeamForming
Yes
Security
Number of SSID supported
16
Security algorithms
SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal
MAC address filtering
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Service Set Identifier (SSID) features
Multiple SSIDs, SSID broadcast on/off
Ports & interfaces
USB 2.0 ports quantity
0
Ethernet LAN (RJ-45) ports
2
Power
Power consumption (typical)
12.2 W
Input current
0.5 A
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Design
Placement
Wall
Product colour
White
Reset button
Yes
LED indicators
Power
Certification
CE, FCC, RoHS, IC
Antenna
Antenna type
Internal
Antennas quantity
2
Antenna gain level (max)
6.5 dBi
Antenna direction type
Omni-directional
Technical details
Reset button
Yes
Sustainability compliance
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Certificates
Certification
CE, FCC, RoHS, IC
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators
Power
Weight & dimensions
Width
143 mm
Depth
86 mm
Weight
320 g
Height
37.6 mm
Packaging data
Quick start guide
Yes
Mounting kit
Yes
Packaging content
Quick start guide
Yes
Mounting kit
Yes
Quantity per pack
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Logistics data
Quantity per pack
1 pc(s)
