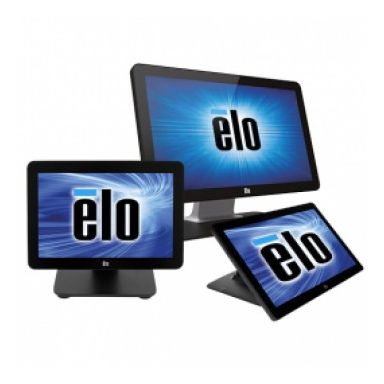

Elo Touch Solution 1002L, 25.4 cm (10''), Projected Capacitive, 10 TP, black
In Stock
|
£267.96
£321.55 (Inc. VAT)
Elo Touch Solution 1002L, 25.4 cm (10''), Projected Capacitive, 10 TP, black
Display
Display number of colours
262144 colours
Display technology
LCD
Viewable size- vertical
13.6 cm
Viewable size- horizontal
21.7 cm
Viewing angle- vertical
170°
Viewing angle- horizontal
170°
LED backlight
Yes
Horizontal scan range
31.5 - 80 kHz
Height adjustment
No
Display resolution
1280 x 800 pixels
Backlight type
LED
Display diagonal
25.6 cm (10.1")
Contrast ratio (typical)
33.334027777778
Display brightness
315 cd/m²
Response time
29 ms
Native aspect ratio
0.67361111111111
Panel type
TFT
HD type
HD
Design
International Protection (IP) code
IPX1
Product colour
Black
Performance
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Number of speakers
2
Touchscreen type
Multi-user
RMS rated power
4 W
Mean time between failures (MTBF)
50000 h
Built-in speaker(s)
Yes
Ergonomics
VESA mounting
Yes
Wall mountable
Yes
Panel mounting interface
75 x 75 mm
Height adjustment
No
Power
AC input voltage
100 - 240 V
AC input frequency
50 / 60 Hz
AC adapter output voltage
12 V
Power consumption (off)
0.2 W
Power supply type
DC
Power consumption (typical)
7.43 W
Power consumption (standby)
1.26 W
Energy efficiency scale
A+++ to D
Energy efficiency class (old)
A+
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Technical details
Touchscreen type
Multi-user
Power supply type
DC
Package weight
1.83 kg
Sustainability compliance
Yes
Sustainability certificates
RoHS
Audio
RMS rated power
4 W
Built-in speaker(s)
Yes
Endurance
Mean time between failures (MTBF)
50000 h
Colour
Product colour
Black
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Weight & dimensions
Width (without stand)
25 cm
Depth (without stand)
2.84 cm
Height (without stand)
16.5 cm
Weight (without stand)
884.2 g
