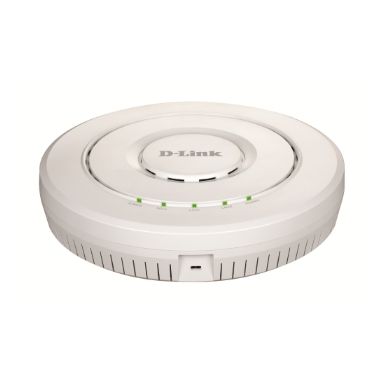

D-Link AX3600 Wi-Fi 6 Dual-Band Unified Access Point
In Stock
|
£494.92
£593.90 (Inc. VAT)
D-Link AX3600 Wi-Fi 6 Dual-Band Unified Access Point
Data transmission
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Maximum data transfer rate
19216 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Automatic channel selection
Yes
Frequency band
2.4 - 5 GHz
Web-based management
Yes
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Channels quantity
165 channels
Certification
CE, EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601- 1-2 (Medical electrical equipment), EN301489-1, EN301489-17, EN300328, EN301893
FCC, IC
cUL+UL (UL/CSA 62368-1 + UL 60950-22)
LVD (IEC/EN 62368-1)
CB (IEC/EN 60950-1 + 62368-1)
RCM
NCC
BSMI (CNS 14336-1)
UL2043
Maximum data transfer rate
19216 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Mean time between failures (MTBF)
485222 h
Wireless LAN features
Frequency band
2.4 - 5 GHz
Channels quantity
165 channels
Network
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Management features
VLAN support
Yes
Quality of Service (QoS) support
Yes
Web-based management
Yes
Command-line interface (CLI)
Yes
Certificates
Certification
CE, EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601- 1-2 (Medical electrical equipment), EN301489-1, EN301489-17, EN300328, EN301893
FCC, IC
cUL+UL (UL/CSA 62368-1 + UL 60950-22)
LVD (IEC/EN 62368-1)
CB (IEC/EN 60950-1 + 62368-1)
RCM
NCC
BSMI (CNS 14336-1)
UL2043
Features
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Automatic channel selection
Yes
Frequency band
2.4 - 5 GHz
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Channels quantity
165 channels
Maximum data transfer rate
19216 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Mean time between failures (MTBF)
485222 h
Maximum data transfer rate (2.4 GHz)
9176 Mbit/s
Maximum data transfer rate (5 GHz)
19216 Mbit/s
Security
Number of SSID supported
32
Security algorithms
AES, TKIP
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Protocols
Management protocols
SNMP v1/v2c/v3, Telnet, SSH
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
Power consumption (max)
19.98 W
Power over Ethernet (PoE)
Yes
Design
Housing material
Plastic
Product colour
White
Certification
CE, EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601- 1-2 (Medical electrical equipment), EN301489-1, EN301489-17, EN300328, EN301893
FCC, IC
cUL+UL (UL/CSA 62368-1 + UL 60950-22)
LVD (IEC/EN 62368-1)
CB (IEC/EN 60950-1 + 62368-1)
RCM
NCC
BSMI (CNS 14336-1)
UL2043
Antenna
Antenna type
Internal
Antenna gain level (max)
4 dBi
Antenna direction type
Omni-directional
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Technical details
Harmonized System (HS) code
85176990
Weight & dimensions
Width
220 mm
Depth
220 mm
Weight
868 g
Height
47 mm
