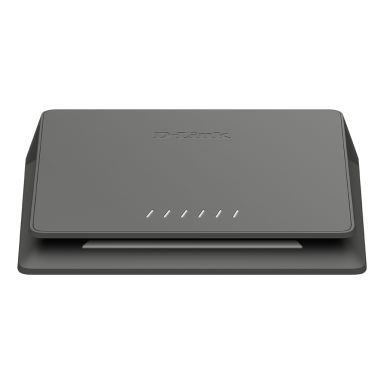

D-Link DMS?106XT 6-Port Multi-Gigabit Unmanaged Switch
In Stock
|
£154.25
£185.10 (Inc. VAT)
D-Link DMS?106XT 6-Port Multi-Gigabit Unmanaged Switch
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
6
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
2.5G Ethernet (copper) ports quantity
5
10G Ethernet (copper) ports quantity
1
Copper ethernet cabling technology
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Network
Copper ethernet cabling technology
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Data transmission
MAC address table
4000 entries
Switching capacity
45 Gbit/s
Store-and-forward
Yes
Design
Product colour
Grey
Stackable
No
LED indicators
Activity, Link, Power
Housing material
Aluminium
Rack mounting
No
Certification
FCC, RCM, BSMI, VCCI
Performance
Mean time between failures (MTBF)
489941 h
Fanless
Yes
Stackable
No
Harmonized System (HS) code
85176990
Power
Power consumption (max)
10.6 W
AC input voltage
100 - 240 V
Input current
1.5 A
DC input voltage
12 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
36.17 BTU/h
Weight & dimensions
Width
217 mm
Depth
163 mm
Height
33 mm
Weight
680 g
Sustainability
Sustainability compliance
Yes
Technical details
Product colour
Grey
Stackable
No
Mean time between failures (MTBF)
489941 h
Housing material
Aluminium
Rack mounting
No
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Certificates
Certification
FCC, RCM, BSMI, VCCI
Compliance certificates
CE, RoHS
Indication
LED indicators
Activity, Link, Power
Logistics data
Harmonized System (HS) code
85176990
