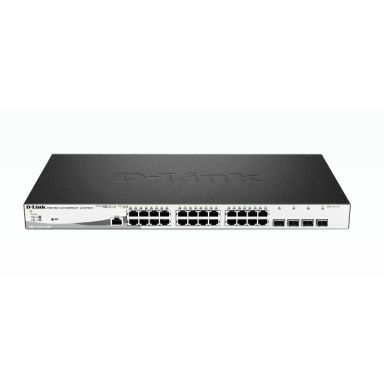

D-Link DGS-1210-28MP/E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey
In Stock
|
£292.99
£351.59 (Inc. VAT)
D-Link DGS-1210-28MP/E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey
Management features
Multicast support
Yes
Traffic classification
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925
Switch layer
L2
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fiber optic connector
SFP
Console port
RJ-45
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4094
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Number of VLANs
4094
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Jumbo frames
9216
Number of static routes
32
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
56 Gbit/s
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Forwarding rate
41.7 Mpps
Optical fiber
Fiber optic connector
SFP
Fiber ethernet cabling technology
1000BASE-X
Performance
Packet buffer memory
1.5 MB
Auto-negotiation
Yes
Noise level
52.4 dB
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
32 MB
Harmonized System (HS) code
85176990
Technical details
Form factor
1U
Product colour
Black, Grey
Noise level
52.4 dB
Rack mounting
Yes
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
Access Control List (ACL) rules
256
SSH/SSL support
Yes
Security algorithms
802.1x RADIUS, SNMP, SSH
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Certificates
Electromagnetic compatibility
FCC A, CE A, VCCI, C-Tick, BSMI, CCC
Certification
IEC61000-4-5, RoHS
Memory
Packet buffer memory
1.5 MB
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
32 MB
Design
Form factor
1U
Product colour
Black, Grey
LED indicators
Activity, Fan fail, Link, Power, Speed
Electromagnetic compatibility
FCC A, CE A, VCCI, C-Tick, BSMI, CCC
Certification
IEC61000-4-5, RoHS
Rack mounting
Yes
Number of fans
2 fan(s)
Indication
LED indicators
Activity, Fan fail, Link, Power, Speed
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
27.49 W
Power source
AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
850.58 BTU/h
Weight & dimensions
Width
440 mm
Depth
210 mm
Height
44 mm
Weight
3.86 kg
Logistics data
Harmonized System (HS) code
85176990
