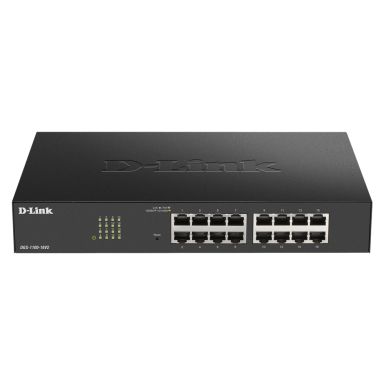

D-Link DGS-1100-16V2 Managed L2 Gigabit Ethernet (10/100/1000) Black
In Stock
|
£107.43
£128.92 (Inc. VAT)
D-Link DGS-1100-16V2 Managed L2 Gigabit Ethernet (10/100/1000) Black
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 10BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T, 10BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
128
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Virtual LAN features
Port-based VLAN, Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
128
Virtual LAN features
Port-based VLAN, Voice VLAN
Data transmission
Number of VLANs
128
Jumbo frames
9216
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
32 Gbit/s
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Forwarding rate
23.81 Mpps
Performance
Packet buffer memory
4.1 MB
Auto-negotiation
Yes
Processor frequency
125 MHz
Memory type
DRAM
Mean time between failures (MTBF)
710519 h
Flash memory
16 MB
Built-in processor
Yes
Fanless
Yes
Technical details
Product colour
Black
Processor frequency
125 MHz
Mean time between failures (MTBF)
710519 h
Rack mounting
Yes
Built-in processor
Yes
Security
Security algorithms
SNMP, SSL/TLS
IGMP snooping
Yes
Queue scheduling algorithms
SPQ, Weighted Round Robin (WRR)
DHCP features
DHCP client
Multicast features
Multicast support
Yes
Certificates
Certification
EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC
cUL, CE LVD, CB, BSMI, CCC
Memory
Packet buffer memory
4.1 MB
Memory type
DRAM
Flash memory
16 MB
Design
Product colour
Black
LED indicators
Yes
Certification
EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC
cUL, CE LVD, CB, BSMI, CCC
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
10.1 W
AC input voltage
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 2000 m
Heat dissipation
34.46 BTU/h
Weight & dimensions
Width
280 mm
Depth
180 mm
Height
44 mm
Weight
1.27 kg
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
