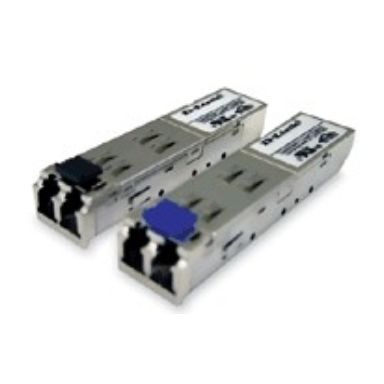

D-Link 1000BASE-SX+ Mini Gigabit Interface Converter network switch component
In Stock
|
£127.43
£152.92 (Inc. VAT)
D-Link 1000BASE-SX+ Mini Gigabit Interface Converter network switch component
Performance
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Maximum transfer distance
2000 m
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Duplex system
Full
Cabling technology
1000Base-SX
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
No
Multi-mode fiber (MMF) supported
Yes
Ethernet interface type
Gigabit Ethernet
SFP transceiver standard
SX
Product colour
Metallic
Housing material
Metal
Hot-Plug support
Yes
Harmonized System (HS) code
85177900
Features
Product colour
Metallic
Housing material
Metal
Hot-Plug support
Yes
Certification
MSA, RoHS
Power
Maximum voltage
3.3 V
Certificates
Certification
MSA, RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 55 °C
Operating relative humidity (H-H)
5 - 95%
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Cabling technology
1000Base-SX
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Ethernet interface type
Gigabit Ethernet
Technical details
Package width
74 mm
Package height
49 mm
Hot-Plug support
Yes
Maximum transfer distance
2000 m
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Duplex system
Full
Dimensions (WxDxH)
29.8 x 11.8 x 56.3 mm
Cabling technology
1000Base-SX
Shipping (inner) case width
26 cm
Shipping (inner) case net weight
3.2 kg
Shipping (inner) case length
36 cm
Shipping (inner) case height
31 cm
Products per shipping (inner) case
50 pc(s)
Products per pallet (sea)
2700 pc(s)
Products per pallet (air)
2700 pc(s)
Pallet gross width
122 cm
Pallet gross length
102 cm
Pallet height (sea)
199 cm
Pallet height (air)
199 cm
Pallet gross weight (sea)
246.8 kg
Pallet gross weight (air)
246.8 kg
Master (outer) cases per pallet (sea)
54 pc(s)
Master (outer) cases per pallet (air)
54 pc(s)
Packaging data
Package depth
131 mm
Package width
74 mm
Package height
49 mm
Package weight
64 g
Weight & dimensions
Package depth
131 mm
Package width
74 mm
Package height
49 mm
Package weight
64 g
Other features
Dimensions (WxDxH)
29.8 x 11.8 x 56.3 mm
Logistics data
Harmonized System (HS) code
85177900
Shipping (inner) case width
26 cm
Shipping (inner) case net weight
3.2 kg
Shipping (inner) case length
36 cm
Shipping (inner) case height
31 cm
Products per shipping (inner) case
50 pc(s)
Products per pallet (sea)
2700 pc(s)
Products per pallet (air)
2700 pc(s)
Pallet gross width
122 cm
Pallet gross length
102 cm
Pallet height (sea)
199 cm
Pallet height (air)
199 cm
Pallet gross weight (sea)
246.8 kg
Pallet gross weight (air)
246.8 kg
Master (outer) cases per pallet (sea)
54 pc(s)
Master (outer) cases per pallet (air)
54 pc(s)
Shipping (inner) case gross weight
4.2 kg
