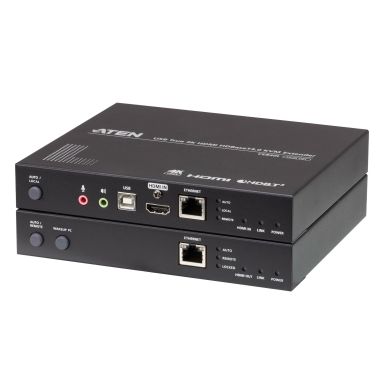

ATEN USB True 4K HDMI HDBaseT3.0 KVM Extender
In Stock
|
£1092.11
£1310.53 (Inc. VAT)
ATEN USB True 4K HDMI HDBaseT3.0 KVM Extender
Features
Type
Transmitter & receiver
Connectivity technology
Wired
Maximum transfer distance
100 m
Maximum digital resolution
4096 x 2160 pixels
Product colour
Black
Material
Metal
Country of origin
Taiwan
LED indicators
Yes
Bandwidth
600 MHz
Supported resolutions
4096 x 2160
3840 x 2160
Supported video modes
480p, 600p, 768p, 800p, 900p, 1024p, 1080i, 1080p, 1440p, 2160p
Bandwidth
18 Gbit/s
HDCP
Yes
HDCP version
2.3
Transmitter
Transmitter video port type
HDMI
Transmitter local video port
Yes
Transmitter local video port type
HDMI
RJ-45 ports quantity (transmitter)
1
Transmitter USB Type-B ports quantity
1
Receiver
Receiver local video port type
HDMI
RJ-45 ports quantity (receiver)
1
Ports & interfaces
USB port type
USB Type-B
RS-232 ports
1
Power
Power consumption (transmitter) (max)
7.36 W
Power consumption (receiver) (max)
7.37 W
DC-in jack
Yes
DC voltage
12 V
Weight & dimensions
Transmitter width
15.6 cm
Transmitter depth
17.8 cm
Transmitter height
2.88 cm
Transmitter weight
820 g
Receiver width
15.6 cm
Receiver depth
17.8 cm
Receiver height
2.88 cm
Receiver weight
810 g
Package width
131 mm
Package depth
540 mm
Package height
233 mm
Package weight
2.98 kg
Packaging data
Package width
131 mm
Package depth
540 mm
Package height
233 mm
Package weight
2.98 kg
Technical details
Harmonized System (HS) code
85176200
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Other features
Bandwidth
600 MHz
Supported video modes
480p, 600p, 768p, 800p, 900p, 1024p, 1080i, 1080p, 1440p, 2160p
Bandwidth
18 Gbit/s
HDCP
Yes
HDCP version
2.3
Logistics data
Country of origin
Taiwan
Master (outer) case width
247 mm
Master (outer) case length
556 mm
Master (outer) case height
153 mm
Master (outer) case gross weight
3.54 kg
Harmonized System (HS) code
85176200
