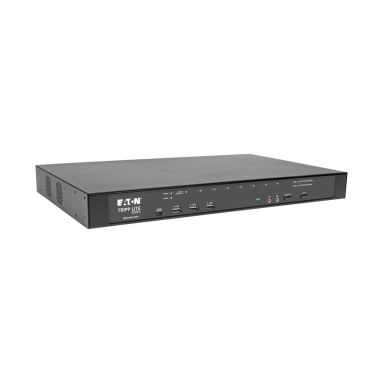

Tripp Lite B064-008-01-IPG 8-Port Cat5 KVM over IP Switch with Virtual Media - 1 Local & 1 Remote User, 1U Rack-Mount, TAA
In Stock
|
£1285.01
£1542.01 (Inc. VAT)
Tripp Lite B064-008-01-IPG 8-Port Cat5 KVM over IP Switch with Virtual Media - 1 Local & 1 Remote User, 1U Rack-Mount, TAA
Ports & interfaces
Console ports
PS/2, USB A, VGA (D-Sub)
USB connector type
Mini-USB B, USB Type-A
Number of computers controlled
8
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
Audio connections
Yes
VGA (D-Sub) ports quantity
8
Ethernet LAN (RJ-45) ports
19
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
19
Performance
Auto scan delay (min)
1 s
Auto scan delay (max)
255 s
HD type
Full HD+
Video bandwidth
60 Hz
Plug and Play
Yes
Maximum resolution
1920 x 1200 pixels
Scan interval
1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s
Number of users
2 user(s)
Maximum operating distance
50 m
Automatic switching
Yes
Technical details
Product colour
Black
Rack mounting
Yes
Plug and Play
Yes
Scan interval
1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s
Push button
Yes
On Screen Display (OSD)
Yes
Number of users
2 user(s)
Maximum operating distance
50 m
LED indicators
Yes
Automatic switching
Yes
Compliance certificates
RoHS
Design
Wired remote switch
Yes
Product colour
Black
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Certification
FCC, REACH
Housing material
Metal
Automatic switching
Yes
Country of origin
Taiwan
Display
Built-in display
No
On Screen Display (OSD)
Yes
Power
Input current
1:00 AM
Power source
AC
AC input frequency
50 - 60 Hz
Input voltage
100 - 240 V
Video
HD type
Full HD+
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Features
Country of origin
Taiwan
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
443.5 mm
Depth
264.7 mm
Height
43.7 mm
Weight
3.52 kg
Package width
534.9 mm
Package depth
140 mm
Package height
335 mm
Package weight
5.1 kg
Packaging data
Package width
534.9 mm
Package depth
140 mm
Package height
335 mm
Package weight
5.1 kg
Certificates
Certification
FCC, REACH
Other features
Push button
Yes
Maximum operating distance
50 m
Automatic switching
Yes
Logistics data
Country of origin
Taiwan
Master (outer) case width
534.9 mm
Master (outer) case length
140 mm
Master (outer) case height
335 mm
Master (outer) case gross weight
5.1 kg
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
8471.80.1000
