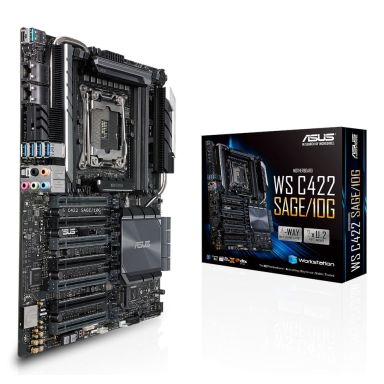

WS C422 SAGE/10G - Motherboard - SSI CEB - LGA2066 Socket - C422 Chipsatz - U
In Stock
|
£540.58
£648.70 (Inc. VAT)
WS C422 SAGE/10G - Motherboard - SSI CEB - LGA2066 Socket - C422 Chipsatz - U
Internal I/O
Number of M.2 (M) slots
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Supported storage drive interfaces
SATA III
USB 2.0 connectors
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
8
Number of EATX power connectors
1
Number of COM connectors
1
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel® C422
Parallel processing technology support
4-Way CrossFireX, 4-Way SLI
Number of processors supported
1
Number of DIMM slots
8
Motherboard form factor
CEB
Component for
Workstation
Audio
Audio output channels
7.1 channels
Performance
Motherboard chipset family
Intel
Motherboard chipset
Intel® C422
RAID levels
0, 1, 5, 10
Audio output channels
7.1 channels
Motherboard form factor
CEB
Component for
Workstation
Processor
Processor manufacturer
Intel
Processor socket
LGA 2066 (Socket R4)
Lithography
14 nm
Memory
Number of memory slots
8
Supported memory types
DDR4-SDRAM
Memory channels
Quad-channel
Supported memory clock speeds
2133,2400,2666 MHz
Maximum internal memory
512 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0, 1, 5, 10
RAID support
Yes
Graphics
Parallel processing technology support
4-Way CrossFireX, 4-Way SLI
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
0
VGA (D-Sub) ports quantity
0
PS/2 ports quantity
0
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
0
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® X550-AT2
Ethernet interface type
10 Gigabit Ethernet
Features
Motherboard chipset family
Intel
Motherboard chipset
Intel® C422
Audio output channels
7.1 channels
Motherboard form factor
CEB
Component for
Workstation
Audio chip
Realtek ALC S1220A
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x8 (Gen 2.x) slots
0
PCI Express x8 (Gen 3.x) slots
0
PCI Express x16 (Gen 2.x) slots
0
PCI Express x16 (Gen 3.x) slots
7
BIOS
BIOS type
UEFI
Clear CMOS button
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
20 - 90%
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Height
300 mm
Weight
2.24 kg
Width
305 mm
Depth
267 mm
Packaging content
Cables included
SATA
User guide
Yes
Other features
Height
300 mm
PCI Express x8 (Gen 2.x) slots
0
PCI Express x8 (Gen 3.x) slots
0
Weight
2.24 kg
Number of processors supported
1
Number of DIMM slots
8
Maximum LRDIMM memory
512 GB
