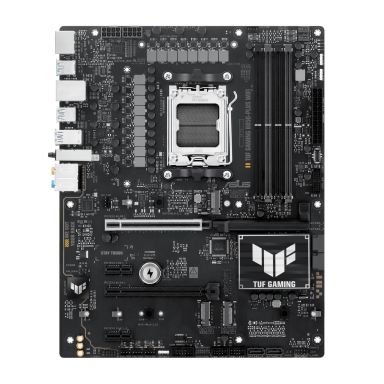

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Socket AM5 ATX
In Stock
|
£203.39
£244.07 (Inc. VAT)
ASUS TUF GAMING B850-PLUS WIFI AMD B850 Socket AM5 ATX
Internal I/O
Number of M.2 (M) slots
3
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
mSATA ports quantity
0
Number of SATA connectors
0
Number of SATA III connectors
4
Number of SATA II connectors
0
Number of COM connectors
1
Number of chassis fan connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of water pump connectors
1
Number of RGB LED pin headers
3
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B850
Supported processor sockets
Socket AM5
Parallel processing technology support
Not supported
On-board graphics card
No
HDMI version
2.1
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11
Motherboard chipset family
AMD
Motherboard chipset
AMD B850
RAID levels
0, 1, 5, 10
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Maximum internal memory
192 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
8000 MHz
ECC Ñompatibility
ECC & Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
7
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Maximum resolution
7680 x 4320 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPort version
1.4
USB 2.0 ports quantity
2
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.4
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Features
Power source type
ATX
Windows operating systems supported
Windows 11
Motherboard chipset family
AMD
Motherboard chipset
AMD B850
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC1220
Product colour
Black
Expansion slots
Number of M.2 (M) slots
3
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes
Power
Power source type
ATX
Video
Maximum resolution
7680 x 4320 pixels
Packaging data
Package width
353 mm
Package depth
273 mm
Package height
68 mm
Package weight
1.81 kg
Software
Windows operating systems supported
Windows 11
Weight & dimensions
Package width
353 mm
Package depth
273 mm
Package height
68 mm
Package weight
1.81 kg
Weight
1.32 kg
Width
305 mm
Depth
244 mm
Packaging content
Quick installation guide
Yes
Cables included
SATA
Antenna included
Yes
Other features
Package width
353 mm
Package depth
273 mm
Package height
68 mm
Package weight
1.81 kg
mSATA ports quantity
0
Weight
1.32 kg
Quick installation guide
Yes
PCI Express x1 (Gen 4.x) slots
2
