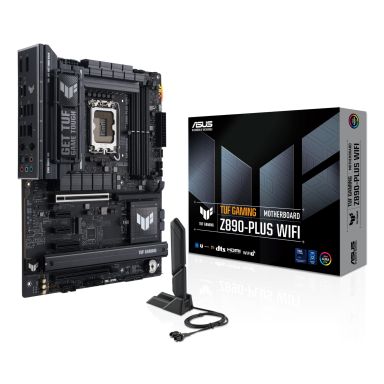

ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
In Stock
|
£238.32
£285.98 (Inc. VAT)
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
Internal I/O
Number of M.2 (M) slots
4
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
mSATA ports quantity
0
Number of SATA connectors
0
Number of SATA III connectors
4
Number of SATA II connectors
0
Number of COM connectors
1
Number of chassis fan connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
Parallel processing technology support
Not supported
On-board graphics card
No
HDMI version
2.1
Cooling type
Passive
Back-to-BIOS button
Yes
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
RAID levels
0, 1, 5, 10
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Core Ultra (Series 2)
Processor socket
LGA 1851 (Socket V1)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Maximum internal memory
192 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
8600 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
8
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
0
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Thunderbolt ports quantity
1
S/PDIF out port
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.4
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Features
Power source type
ATX
Windows operating systems supported
Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC1220P
Product colour
Black
Expansion slots
Number of M.2 (M) slots
4
PCI Express x4 (Gen 1.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
PCI Express x4 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Back-to-BIOS button
Yes
Power
Power source type
ATX
Packaging data
Package width
353 mm
Package depth
273 mm
Package height
68 mm
Package weight
2.34 kg
Software
Windows operating systems supported
Windows 11
Weight & dimensions
Package width
353 mm
Package depth
273 mm
Package height
68 mm
Package weight
2.34 kg
Width
305 mm
Depth
244 mm
Packaging content
Quick installation guide
Yes
Cables included
SATA
Other features
Package width
353 mm
Package depth
273 mm
Package height
68 mm
Package weight
2.34 kg
mSATA ports quantity
0
Quick installation guide
Yes
Back-to-BIOS button
Yes
