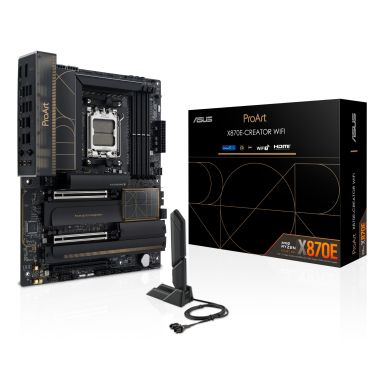

ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX
In Stock
|
£409.18
£491.02 (Inc. VAT)
ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX
Internal I/O
Number of M.2 (M) slots
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
5
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
USB 3.2 Gen 2x2 connectors
1
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD X870E
Supported processor sockets
Socket AM5
Parallel processing technology support
Not supported
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11
Motherboard chipset family
AMD
Motherboard chipset
AMD X870E
RAID levels
0, 1, 10, 5
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Maximum internal memory
192 GB
Unbuffered memory
Yes
ECC ?ompatibility
ECC & Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 10, 5
Number of storage drives supported
8
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
1
WiFi-AP antenna jack
1
VGA (D-Sub) ports quantity
0
Microphone in
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
0
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB4 Gen 2x2 ports quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.4
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Features
Windows operating systems supported
Windows 11
Motherboard chipset family
AMD
Motherboard chipset
AMD X870E
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek S1220A
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes
Software
Windows operating systems supported
Windows 11
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Cables included
DisplayPort, SATA
