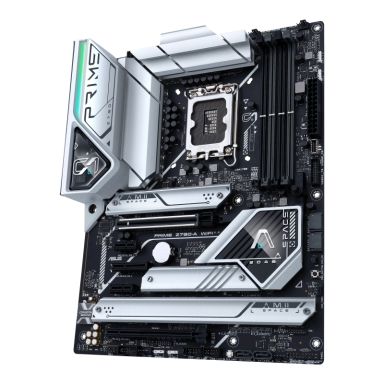

ASUS PRIME Z790-A WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2
In Stock
|
£205.40
£246.48 (Inc. VAT)
ASUS PRIME Z790-A WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2
Internal I/O
Number of M.2 (M) slots
4
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA connectors
0
Number of SATA III connectors
4
Number of SATA II connectors
0
Number of COM connectors
1
Number of chassis fan connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
USB 3.2 Gen 2x2 connectors
0
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
Supported processor sockets
LGA 1700
Parallel processing technology support
Not supported
On-board graphics card
No
Motherboard form factor
ATX
Component for
PC
Mini PCI Express slot (half-length)
0
Mini PCI Express slot (full length)
0
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core⢠i3, Intel® Core⢠i5, Intel® Core⢠i7, Intel® Core⢠i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Maximum internal memory
192 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
7200 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
0
WiFi-AP antenna jack
1
VGA (D-Sub) ports quantity
0
S/PDIF out port
No
PS/2 ports quantity
0
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-I ports quantity
0
DVI-D ports quantity
0
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB4 Gen 3x2 ports quantity
0
USB4 Gen 2x2 ports quantity
0
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Features
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Product colour
Black, White
Expansion slots
Mini PCI Express (Gen 2.x) slots
0
Mini PCI Express (Gen 1.x) slots
0
Number of M.2 (M) slots
4
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots
0
PCI Express x1 (Gen 2.x) slots
0
PCI Express x1 (Gen 3.x) slots
2
PCI Express x4 (Gen 1.x) slots
0
PCI Express x4 (Gen 2.x) slots
0
PCI Express x8 (Gen 1.x) slots
0
PCI Express x16 (Gen 2.x) slots
0
PCI Express x16 (Gen 3.x) slots
0
PCI slots
0
PCI Express x8 slots
0
PCI Express x4 slots
0
PCI Express x16 slots
0
PCI Express x1 slots
0
Mini PCI Express slots
0
Mini PCI Express slot (half-length)
0
Mini PCI Express slot (full length)
0
PCI Express x1 (Gen 4.x) slots
0
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
PCI Express x4 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes
Power
Power source type
ATX
Packaging data
Package width
280 mm
Package depth
265 mm
Package height
71 mm
Package weight
1.27 kg
Software
Windows operating systems supported
Windows 10 x64, Windows 11
Drivers included
Yes
Weight & dimensions
Package width
280 mm
Package depth
265 mm
Package height
71 mm
Package weight
1.27 kg
Width
305 mm
Depth
244 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Other features
Package width
280 mm
Package depth
265 mm
Package height
71 mm
Package weight
1.27 kg
PCI Express x1 (Gen 4.x) slots
0
