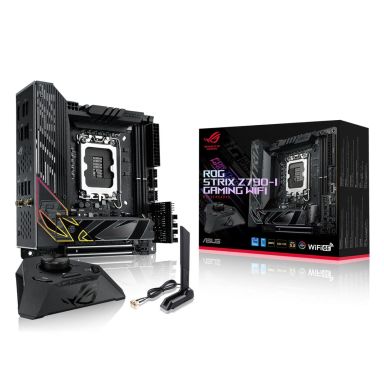

ASUS ROG STRIX Z790-I GAMING WIFI Intel Z790 LGA 1700 mini ITX

Number of M.2 (M) slots

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

12V power connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

2

Number of chassis fan connectors

1

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Motherboard chipset family

Intel

Motherboard chipset

Intel Z790

Supported processor sockets

LGA 1700

Parallel processing technology support

Not supported

HDMI version

2.1

Motherboard form factor

mini ITX

Component for

PC

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10, Windows 11

Motherboard chipset family

Intel

Motherboard chipset

Intel Z790

RAID levels

0, 1

Supported processor sockets

LGA 1700

Motherboard form factor

mini ITX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Supported processor sockets

LGA 1700

Processor socket

LGA 1700

Number of memory slots

2

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Non-ECC

Yes

Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz

Maximum internal memory

64 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

7600 MHz

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1

RAID support

Yes

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 2.0 ports quantity

2

WiFi-AP antenna jack

2

Thunderbolt ports quantity

2

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.3

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Power source type

ATX

Windows operating systems supported

Windows 10, Windows 11

Motherboard chipset family

Intel

Motherboard chipset

Intel Z790

Supported processor sockets

LGA 1700

Motherboard form factor

mini ITX

Component for

PC

Number of M.2 (M) slots

2

PCI Express x16 (Gen 5.x) slots

1

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS button

Yes

Power source type

ATX

Package width

285 mm

Package depth

220 mm

Package height

110 mm

Package weight

1.48 kg

Windows operating systems supported

Windows 10, Windows 11

Drivers included

Yes

Package width

285 mm

Package depth

220 mm

Package height

110 mm

Package weight

1.48 kg

Width

170 mm

Depth

170 mm

Drivers included

Yes

Cables included

SATA

User guide

Yes

Package width

285 mm

Package depth

220 mm

Package height

110 mm

Package weight

1.48 kg

Packaging content

Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel Cable ROG FPS-II Card 1 x ROG FPS-II Card ROG STRIX HIVE 1 x ROG STRIX HIVE 1 x USB Type-C® power connection cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Rubber Package(s) for M.2 1 x Q-Latch package(s) for M.2 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card
