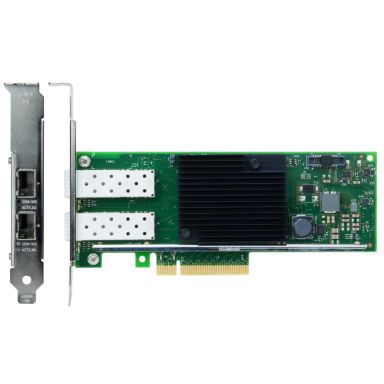

Lenovo 7ZT7A00537 network card Internal Fiber 10000 Mbit/s

Internal

Yes

Fiber ports quantity

2

Fiber optic connector

SFP+

Interface

Fiber

Host interface

PCI Express

Connectivity technology

Wired

Maximum data transfer rate

10000 Mbit/s

Product colour

Black- Green

Wake-on-LAN ready

Yes

Receive Side Scaling (RSS)

Yes

Intelligent Offloads

Yes

Intel® Virtualization Technology (Intel® VT)

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Data Direct I/O Technology

Yes

Harmonized System (HS) code

85176990

VLAN tagging

Yes

Jumbo frames

9728

iSCSI support

Yes

Networking standards

IEEE 802.1Q- IEEE 802.1ad- IEEE 802.1as- IEEE 802.1p- IEEE 802.3ae- IEEE 802.3x

Wake-on-LAN ready

Yes

Jumbo frames support

Yes

Maximum data transfer rate

10000 Mbit/s

Flow control support

Yes

Product colour

Black- Green

Certification

EN55022 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003- Issue-004 FCC 47 CFR Part 15 Class A VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1

Internal

Yes

Component for

Server

Compatible operating systems

Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi) VMware vSphere 6.5 (ESXi)

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-20 - 65 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 80%

Operating altitude

0 - 2134 m

Width

15 mm

Depth

167 mm

Height

69 mm

Quantity

1

Wake-on-LAN ready

Yes

Receive Side Scaling (RSS)

Yes

Intelligent Offloads

Yes

Intel® Virtualization Technology (Intel® VT)

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Data Direct I/O Technology

Yes

Certification

EN55022 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003- Issue-004 FCC 47 CFR Part 15 Class A VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1

Compatible operating systems

Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi) VMware vSphere 6.5 (ESXi)

Jumbo frames

9728

Receive Side Scaling (RSS)

Yes

Intelligent Offloads

Yes

Intel® Virtualization Technology (Intel® VT)

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Data Direct I/O Technology

Yes

Flow control support

Yes

Harmonized System (HS) code

85176990

Quantity

1
