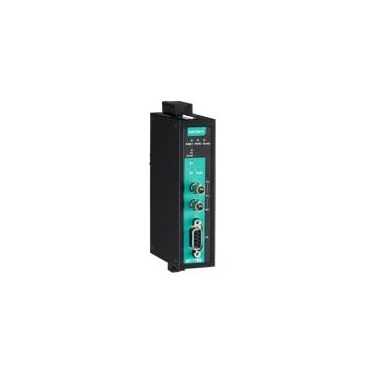

Moxa ICF-1180I-S-ST network media converter 1310 nm Black, Green
In Stock
|
£432.15
£518.58 (Inc. VAT)
Moxa ICF-1180I-S-ST network media converter 1310 nm Black, Green
Network
Fiber optic connector
ST
Technical details
Housing material
Metal
Wavelength
1310 nm
Internal
No
Compliance certificates
RoHS
Ports & interfaces
Connectivity technology
Wired
Fiber ports quantity
1
Fiber optic connector
ST
Indication
LED indicators
Yes
Performance
Wavelength
1310 nm
Design
Housing material
Metal
Safety
UL 508
LED indicators
Yes
Product colour
Black, Green
Certification
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX
Zone 2 EEx nC IIC, IECEx
EN 55022/24
CISPR 22, FCC Part 15B Class A
EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV
EN 61000-4-3 (RS): 80 MHz to 1 GHz: 10 V/m
EN 61000-4-4 (EFT): Power: 2 kV; Signal: 2 kV
EN 61000-4-5 (Surge): Power: 2 kV; Signal: 2 kV
EN 61000-R[-35]C4-6 (CS): 150 kHz to 80 MHz: 10 V/m
EN 61000-4-8 (PFMF)
Internal
No
Power
Input voltage
12 - 48 V
Input current
0.143 A
Colour
Product colour
Black, Green
Weight & dimensions
Width
30.3 mm
Depth
115 mm
Weight
180 g
Height
70 mm
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Packaging content
Quick installation guide
Yes
Manual
Yes
Certificates
Safety
UL 508
Certification
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX
Zone 2 EEx nC IIC, IECEx
EN 55022/24
CISPR 22, FCC Part 15B Class A
EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV
EN 61000-4-3 (RS): 80 MHz to 1 GHz: 10 V/m
EN 61000-4-4 (EFT): Power: 2 kV; Signal: 2 kV
EN 61000-4-5 (Surge): Power: 2 kV; Signal: 2 kV
EN 61000-R[-35]C4-6 (CS): 150 kHz to 80 MHz: 10 V/m
EN 61000-4-8 (PFMF)
