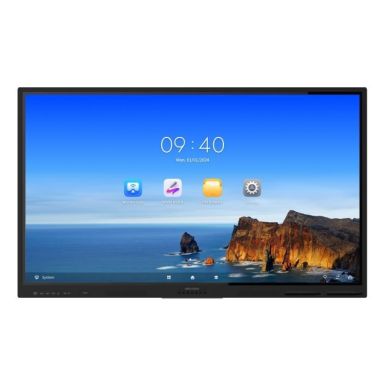

Hikvision DS-D5B75RB/EL 75' Value Series Interactive Display
In Stock
|
£1188.60
£1426.32 (Inc. VAT)
Hikvision DS-D5B75RB/EL 75' Value Series Interactive Display
Display
Display diagonal
190.5 cm (75")
Working area
1652.2 x 930.8 mm
Contrast ratio (typical)
1200:01:00
Touchscreen
Yes
Touchscreen type
Infrared
Number of simultaneous touchpoints
40
Touch resolution
32768 x 32768 pixels
Touch system response time
5 ms
Panel type
IPS
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Response time
8 ms
Pixel pitch
0.143 x 0.43 mm
Colour gamut
72%
Haze rate
25%
Touch technology
Multi-touch
Display brightness
400 cd/m²
Display resolution
3840 x 2160 pixels
Display number of colours
1.07 billion colours
HD type
4K Ultra HD
LED backlighting type
Direct-LED
Contrast ratio (dynamic)
15000:1
Maximum refresh rate
60 Hz
Anti-glare screen
Yes
Touch object size (min)
2 mm
Native aspect ratio
16:09
Low Blue Light technology
Yes
Hardness
9H
LED backlight
Yes
Features
Display diagonal
190.5 cm (75")
Working area
1652.2 x 930.8 mm
Contrast ratio (typical)
1200:01:00
Touchscreen
Yes
Touchscreen type
Infrared
Number of simultaneous touchpoints
40
Touch resolution
32768 x 32768 pixels
Touch system response time
5 ms
Panel type
IPS
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Response time
8 ms
Pixel pitch
0.143 x 0.43 mm
Colour gamut
72%
Haze rate
25%
Touch technology
Multi-touch
Display brightness
400 cd/m²
Display resolution
3840 x 2160 pixels
Display number of colours
1.07 billion colours
HD type
4K Ultra HD
LED backlighting type
Direct-LED
Contrast ratio (dynamic)
15000:1
Maximum refresh rate
60 Hz
Anti-glare screen
Yes
Touch object size (min)
2 mm
Native aspect ratio
16:09
Low Blue Light technology
Yes
Hardness
9H
LED backlight
Yes
Product colour
Black
Graphics card
Mali-G52 MP2
Operating system installed
Android
Computer system
Graphics card
Mali-G52 MP2
Operating system installed
Android
Maximum internal memory
64 GB
Built-in processor
Yes
User memory
64 GB
Processor frequency
1.92 GHz
Processor cores
4
RAM capacity
4 GB
Processor architecture
ARM Cortex-A55
Operating system version
13
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
Speaker power
20 W
Projector
Built-in projector
No
Contrast ratio (typical)
1200:01:00
Network
Bluetooth
Yes
Bluetooth version
5.2
Bluetooth Low Energy (BLE)
Yes
Wi-Fi
Yes
Near Field Communication (NFC)
Yes
Ethernet LAN data rates
100 Mbit/s
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi standards
802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Antenna type
2x2
Ports & interfaces
Interface
HDMI
USB 2.0 ports quantity
3
USB connector type
USB Type-A, USB Type-C
HDMI ports quantity
2
HDCP
Yes
Ethernet LAN (RJ-45) ports
2
RS-232 ports
1
USB Type-C ports quantity
1
USB 2.0 Type-A hub ports quantity
3
HDMI version
2
HDCP version
1.4/2.2/2.3
Line-in
Yes
Line-out
Yes
OPS slot
1
Bluetooth
Yes
Bluetooth version
5.2
Bluetooth Low Energy (BLE)
Yes
Wi-Fi
Yes
Near Field Communication (NFC)
Yes
Ethernet LAN data rates
100 Mbit/s
Ethernet LAN
Yes
Ergonomics
Wall mountable
Yes
Product colour
Black
VESA mounting
Yes
Panel mounting interface
800 x 400 mm
Performance
Temperature sensor
Yes
Ambient light sensor
Yes
Operating hours (hours/days)
16/7
Remote control included
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
175 W
Power consumption (standby)
0.5 W
Power consumption (max)
217 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Technical details
Working area
1652.2 x 930.8 mm
Touchscreen
Yes
Panel type
IPS
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Response time
8 ms
Pixel pitch
0.143 x 0.43 mm
Colour gamut
72%
Haze rate
25%
Quantity per pack
1 pc(s)
Remote control included
Yes
Weight & dimensions
Width
1713.2 mm
Depth
82.5 mm
Height
1025.5 mm
Weight
49.1 kg
Packaging data
Package width
1907 mm
Package depth
223 mm
Package height
1160 mm
Package weight
63 kg
Quantity per pack
1 pc(s)
Stylus included
Yes
Packaging content
Cables included
AC
Stylus included
Yes
Mounting kit
Yes
Remote control included
Yes
Manual
Yes
Number of stylus pens
2
Processor
Built-in processor
Yes
Processor frequency
1.92 GHz
Processor cores
4
Processor architecture
ARM Cortex-A55
Memory
Maximum internal memory
64 GB
User memory
64 GB
RAM capacity
4 GB
Colour
Product colour
Black
