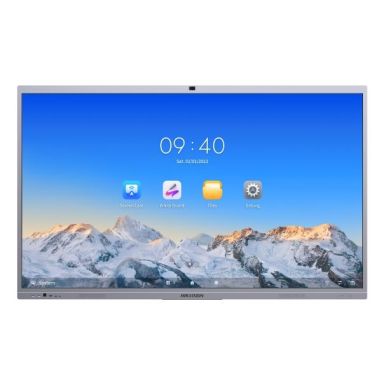

Hikvision DS-D5C75RB/B 75' Ultra Series 4K UHD Interactive Touch Screen Display with Integrated AI-E
In Stock
|
£2028.60
£2434.32 (Inc. VAT)
Hikvision DS-D5C75RB/B 75' Ultra Series 4K UHD Interactive Touch Screen Display with Integrated AI-E
Display
LED backlight
Yes
Panel type
VA
Display number of colours
1.07 billion colours
Number of simultaneous touchpoints
45
LED backlighting type
Direct-LED
Touchscreen
Yes
Active display area (W x H)
1650.24 x 928.26 mm
Display technology
LED
Colour gamut
72%
Display diagonal
190.5 cm (75")
Display resolution
3840 x 2160 pixels
Display brightness
400 cd/m²
HD type
4K Ultra HD
Response time
6 ms
Contrast ratio (typical)
5000:01:00
Contrast ratio (dynamic)
30000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.14325 x 0.42975 mm
Panel life
50000 h
Noise reduction
Yes
Native aspect ratio
16:09
Touchscreen technology
Infrared
Touch response time
5 ms
Surface hardness
9H
Native refresh rate
60 Hz
Haze rate
25%
Multi-touch
Yes
Ports & interfaces
USB connector type
USB Type-A, USB Type-C
USB port
Yes
DisplayPorts in
1
HDMI version
2
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
DisplayPorts quantity
1
Ethernet LAN
Yes
HDMI ports quantity
4
Ethernet LAN data rates
1000 Mbit/s
DVI port
No
Audio (L/R) in
1
Audio (L/R) out
1
Ethernet LAN (RJ-45) ports
2
RS-232 interface
Yes
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
8
HDMI input ports quantity
3
HDMI output ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
USB Type-C DisplayPort Alternate Mode
Yes
Audio
Number of built-in speakers
3
RMS rated power
55 W
Noise reduction
Yes
Built-in speaker(s)
Yes
Design
Product design
Interactive flat panel
Placement supported
Indoor
Orientation
Horizontal
Product colour
Grey
Panel mounting interface
800 x 400 mm
VESA mounting
Yes
Mounting type
Wall
Screen shape
Flat
Performance
Purpose
Universal
Operating hours (hours/days)
16/7
HDCP version
2
Optical bonding
Yes
Automatic gain control
Yes
Security algorithms
WEP, WPA, WPA2
Wi-Fi
Yes
Panel life
50000 h
Power
Power consumption (max)
250 W
Power consumption (typical)
170 W
Power consumption (standby)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Computer system
Yes
Computer system type
System on Chip (SoC)
Processor cores
8
Processor family
ARM Cortex
Processor frequency
2.4 GHz
Operating system installed
Android
Internal memory
8 GB
Internal storage capacity
128 GB
Processor manufacturer
ARM
Built-in processor
Yes
On-board graphics card model
Mali G610 MC4
Processor architecture
ARM Cortex-A76+Cortex-A55
Operating system version
13
Weight & dimensions
Display width
1713.2 mm
Display depth
82.5 mm
Display height
1034.5 mm
Display weight
51.2 kg
Packaging data
Package width
1937 mm
Package depth
264 mm
Package height
1222 mm
Package weight
67.6 kg
Mounting kit
Yes
Cables included
AC, HDMI, USB
Packaging content
Mounting kit
Yes
Cables included
AC, HDMI, USB
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Technical details
VESA mounting
Yes
USB connector type
USB Type-A, USB Type-C
Panel type
VA
DisplayPorts in
1
Number of simultaneous touchpoints
45
LED backlighting type
Direct-LED
Thin Client
Processor family
ARM Cortex
Processor frequency
2.4 GHz
Operating system installed
Android
Internal memory
8 GB
Internal storage capacity
128 GB
Other features
USB connector type
USB Type-A, USB Type-C
Panel type
VA
DisplayPorts in
1
Number of simultaneous touchpoints
45
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
Subwoofer RMS power
25 W
Power consumption (max)
250 W
Display technology
LED
Built-in subwoofer
Yes
Built-in microphone
Yes
Built-in camera
Yes
Bluetooth version
5.1
Bluetooth
Yes
Noise reduction
Yes
Bluetooth Low Energy (BLE)
Yes
Camera resolution (numeric)
8 MP
Diagonal field of view
120°
