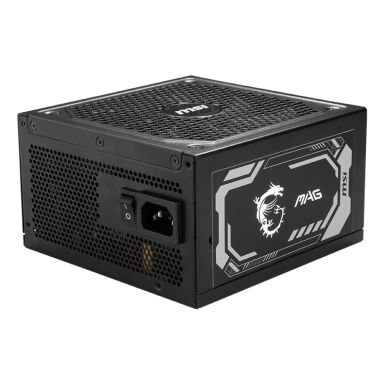

MSI MAG A1000GL PCIE5 power supply unit 1000 W 24-pin ATX ATX Black
In Stock
|
£136.51
£163.81 (Inc. VAT)
MSI MAG A1000GL PCIE5 power supply unit 1000 W 24-pin ATX ATX Black
Cooling
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Fan speed
500 - 1800 RPM
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC
ATX version
3.1
Bearing technology
FDB
Fan's mean time to failure (MTTF)
150000 h
Design
80 PLUS certification
80 PLUS Gold
Product colour
Black
Fan diameter
13.5 cm
On/off switch
Yes
Number of fans
1 fan(s)
Illumination
No
Fan speed
500 - 1800 RPM
Cooling type
Active
Power
Total power
1000 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+12V)
999.6 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Max output current (+12V)
83.3 A
Max output current (+5V)
22 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3:00 AM
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency
90%
Number of +12V rail(s)
1
Ports & interfaces
Motherboard power cable length
60 cm
SATA power cable length
150,500 mm
Peripheral (Molex) power cable length
450,500 mm
Motherboard power connector
24-pin ATX
Number of SATA power connectors
12
Peripheral (Molex) power connectors (4-pin)
1
EPS power connector (8-pin)
No
PCI Express power connectors (6+2 pin)
4
Cabling type
Fully-Modular
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (16-pin)
1
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
169 g
Technical details
Sustainability compliance
Yes
Certificates
80 PLUS certification
80 PLUS Gold
Other features
Fan's mean time to failure (MTTF)
150000 h
