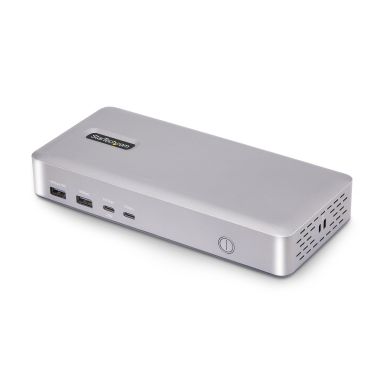

StarTech.com USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Host interface

USB4

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

2

Microphone in

No

Headphone outputs

0

DC-in jack

Yes

Connectivity technology

Wired

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

100 W

Full duplex

Yes

Wake-on-LAN ready

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Ethernet LAN (RJ-45) ports

1

UASP support

Yes

Maximum digital resolution

3840 x 2160 pixels

Full duplex

Yes

Number of displays supported

2

On/off switch

Yes

Product colour

Silver

Card reader integrated

No

Cable lock slot

Yes

LED indicators

Yes

Data transfer rate

40 Gbit/s

Cable lock slot type

Kensington, Nano

HD type

4K Ultra HD

Housing material

Plastic

Maximum refresh rate

120 Hz

Product colour

Silver

Cable lock slot

Yes

Data transfer rate

40 Gbit/s

Products per master (outer) case

8 pc(s)

Master (outer) case width

305 mm

Master (outer) case length

375 mm

Master (outer) case height

265 mm

Card reader integrated

No

Power source type

DC

Input current

2.5 A

Power plug type

Type M

Compatible power plug types

EU, UK

AC input voltage

100 - 240 V

Power consumption (typical)

165 W

Output voltage

20 V

Output current

9 A

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64

Other operating systems supported

ChromeOS

LED indicators

Yes

Operating temperature (T-T)

Storage temperature (T-T)

Operating relative humidity (H-H)

0 - 95%

Weight

138.6 g

Width

210 mm

Depth

95 mm

Height

34 mm

Package weight

1.3 kg

Package width

145 mm

Package depth

230 mm

Package height

89 mm

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64

Product colour

Silver

Cable lock slot

Yes

LED indicators

Yes

Cable lock slot type

Kensington, Nano

Package weight

1.3 kg

Package width

145 mm

Package depth

230 mm

Package height

89 mm

Quick start guide

Yes

Cables included

USB

Products per master (outer) case

8 pc(s)

Master (outer) case width

305 mm

Master (outer) case length

375 mm

Master (outer) case height

265 mm

Chipset

VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE
