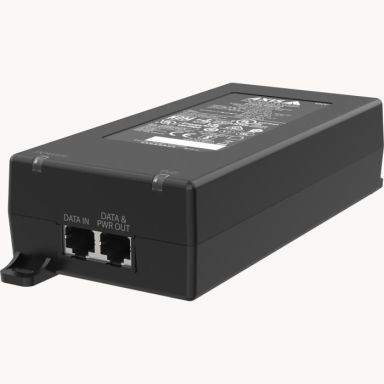

Axis AXIS TU8004 90 W MIDSPAN
In Stock
|
£220.42
£264.50 (Inc. VAT)
Axis AXIS TU8004 90 W MIDSPAN
Features
Housing material
Plastic
Brand compatibility
Axis
Type
Midspan
Product colour
Black
Certification
IS 13252, IEC/EN/UL 62368-1, CCC, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC, RCM AS/NZS CISPR 32, VCCI, EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
Networking standards
IEEE 802.3af, IEEE 802.3bt
Number of inputs
1 inputs
Number of outputs
1 outputs
Ports & interfaces
Number of inputs
1 inputs
Number of outputs
1 outputs
Connectivity technology
Wired
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000,2500,5000 Mbit/s
Power
Output voltage
57 V
Input voltage
100 - 240 V
Rated power
90 W
Input frequency
50/60 Hz
Power consumption (typical)
64.3 W
Power consumption (max)
91.7 W
Power source type
PoE
Technical details
Type
Midspan
Doesn't contain
Halogen, PVC
Weight & dimensions
Width
80 mm
Weight
500 g
Height
44 mm
Depth
166 mm
Colour
Product colour
Black
Packaging content
Quick installation guide
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-20 - 65 °C
Certificates
Certification
IS 13252, IEC/EN/UL 62368-1, CCC, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC, RCM AS/NZS CISPR 32, VCCI, EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
