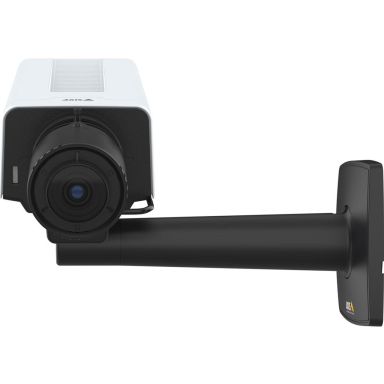

Axis AXIS P1387 1/2.7IN IMAGE SENSOR
In Stock
|
£837.67
£1005.20 (Inc. VAT)
Axis AXIS P1387 1/2.7IN IMAGE SENSOR
Performance
Infrared (IR) cut-off filter
Yes
Languages support
Multi
Processor model
ARTPEC-8
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Indoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Built-in processor
Yes
Dynamic range
120 dB
Design
Form factor
Box
Product colour
White
Mounting type
Wall
Housing material
Aluminium
Camera
Minimum illumination
0.008 lx
Camera shutter speed
1/66500 - 2 s
Camera pixel size
2 µm
Lens viewing angle, horizontal
24 - 112°
Lens viewing angle, vertical
18 - 80°
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 2.7 mm (1 / 2.7")
Lens system
Number of lenses
1
Auto focus
Yes
Recognize distance (wide)
11.2 m
Recognize distance (tele)
48.8 m
Observe distance (wide)
22.3 m
Observe distance (tele)
96.9 m
Identify distance (wide)
5.6 m
Identify distance (tele)
24.4 m
Detect distance (wide)
56.2 m
Detect distance (tele)
244.2 m
Minimum aperture number
1.4
Focal length range
2.8 - 13 mm
Video
Noise reduction
Yes
Image quality adjustment
Brightness, Contrast, Sharpness
Privacy masking
Yes
Flip & mirror
Yes
Image stabilizer
Yes
Gain control type
Auto
Bit rate control
Variable Bit Rate (VBR)
Noise reduction technology
2D noise reduction, 3D noise reduction
Video compression formats
H.264, H.265, M-JPEG, MPEG4
Maximum resolution
2592 x 1944 pixels
Supported graphics resolutions
160 x 120, 160 x 90, 2592 x 1944
Frame rate
60 fps
Video streaming
Yes
Total megapixels
5 MP
Audio
Signal-to-Noise Ratio (SNR)
55 dB
Built-in microphone
Yes
Audio system
2-way
Audio formats supported
G.711, G.726, LPCM, OPUS
Audio detection
Yes
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Networking standards
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Quality of Service (QoS) support
Yes
Streaming method
Multicast
Ethernet LAN
Yes
Wi-Fi
No
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory
2048 MB
Flash memory
8192 MB
Ports & interfaces
Terminal block port
Yes
RS-485 ports
1
RS-422 ports
1
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Connectivity technology
Wired
Security
Intelligent Video Surveillance (IVS) system features
Face detection, Human detection, Line crossing detection, Scene change, Vehicle detection
Video motion detection
Yes
Active tampering alarm
Yes
Alarm input channels
2
Alarm output channels
2
Power
Power source type
DC, PoE
Power consumption (max)
10.57 W
Power consumption (Power over Ethernet (PoE))
11.73 W
Power consumption (typical)
4.26 W
DC-in jack
Yes
DC output voltage
10, 28
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
80 mm
Depth
225 mm
Height
63.5 mm
Weight
480 g
Weight (with stand)
775 g
Sustainability
Compliance certificates
CE, EAC, KC, RCM, REACH, RoHS, UKCA, UL, VCCI, cUL
Packaging content
Number of cameras
1
Terminal block included
Yes
Mounting kit
Yes
Manual
Yes
Technical details
Doesn't contain
BFR
Compliance certificates
CE, EAC, KC, RCM, REACH, RoHS, UKCA, UL, VCCI, cUL
Other features
Video compression formats
H.264, H.265, M-JPEG, MPEG4
Doesn't contain
BFR
