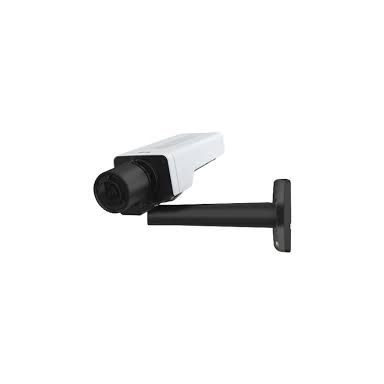

Axis AXIS P1385 1/2.8IN IMAGE SENSOR

PTZ modes

Digital PTZ, Preset point

Fog proof

Yes

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Indoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Certification

UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267, IPv6 USGv6 ETSI EN 303 645, FIPS 140

Fog proof

Yes

Form factor

Box

Product colour

Black, White

Mounting type

Ceiling/wall

Housing material

Aluminium

Minimum illumination

0.005 lx

Camera shutter speed

1/37000 - 2 s

Camera pixel size

2.9 µm

Lens viewing angle, horizontal

121 - 26°

Lens viewing angle, vertical

64 - 15°

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Auto focus

Yes

Focal length range

2.8 - 13 mm

Night vision

Yes

LED type

IR

Noise reduction

Yes

Privacy masking

Yes

Image stabilizer

Yes

Gain control type

Auto

Noise reduction technology

2D noise reduction, 3D noise reduction

Video compression formats

H.264, H.265, M-JPEG, MPEG4

Maximum resolution

1920 x 1080 pixels

Frame rate

60 fps

Video streaming

Yes

Total megapixels

2 MP

Signal-to-Noise Ratio (SNR)

55 dB

Audio formats supported

AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Ethernet LAN

Yes

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLS b , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP,NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Internal memory

1024 MB

Flash memory

8192 MB

RS-485 ports

2

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Security algorithms

802.1x RADIUS, EAP-TLS, HTTPS, PEAP, TLS

Power source type

DC, PoE

Power consumption (max)

7.76 W

Power consumption (Power over Ethernet (PoE))

2.97 W

Power consumption (typical)

3.15 W

DC output voltage

10, 28

Certification

UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267, IPv6 USGv6 ETSI EN 303 645, FIPS 140

Operating temperature (T-T)

-10 - 55 °C

Storage temperature (T-T)

-40 - 65 °C

Width

87 mm

Depth

225 mm

Height

235 mm

Weight

480 g

Number of cameras

1

Video compression formats

H.264, H.265, M-JPEG, MPEG4
