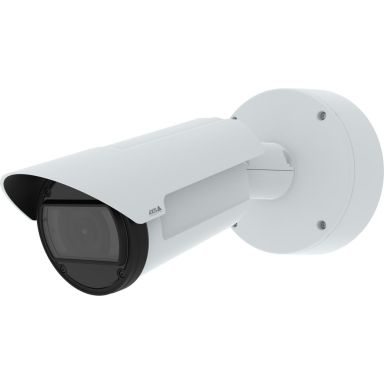

Axis Communications Q1805-LE 2MP Outdoor Network Bullet Camera with Night Vision

Preset points

Yes

Infrared (IR) cut-off filter

Yes

PTZ modes

Digital PTZ

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Indoor & outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Certification

UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM

IK code

IK10

Form factor

Bullet

Product colour

Black, White

Mounting type

Wall

Protection features

Impact resistant

International Protection (IP) code

IP66, IP67

Housing material

Aluminium, Glass

Minimum illumination

0.01 lx

Tilt angle range

0 - 90°

Pan range

-180 - 180°

Angle of rotation

360°

Camera shutter speed

1/111000 - 2 s

Camera pixel size

2.9 µm

Lens viewing angle, horizontal

60 - 2.3°

Lens viewing angle, vertical

39 - 1.3°

Sensor type

CMOS

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Number of sensors

1

Number of lenses

1

Maximum aperture number

4

Recognize distance (wide)

12.1 m

Recognize distance (tele)

376.8 m

Observe distance (wide)

24 m

Observe distance (tele)

747.7 m

Identify distance (wide)

6 m

Identify distance (tele)

188.4 m

Detect distance (wide)

60.5 m

Detect distance (tele)

1884.2 m

Closest focusing distance

1.2 m

Minimum aperture number

1.4

Zoom capability

Yes

Optical zoom

32x

Focal length range

4.3 - 137 mm

Night vision

Yes

Night vision distance

100 m

LED type

IR

Infra-red wavelength

850 nm

Noise reduction

Yes

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Text caption overlay

Yes

Privacy masking

Yes

Image stabilizer

Yes

Gain control type

Auto

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Noise reduction technology

2D noise reduction, 3D noise reduction

Maximum resolution

1920 x 1080 pixels

Video formats supported

AVC, H.264, H.265, HEVC, M-JPEG, MPEG4

Supported graphics resolutions

160 x 120, 320 x 180, 1400 x 1050 (SXGA+), 1920 x 1080 (HD 1080)

Supported video modes

1080p

Frame rate

90 fps

Video streaming

Yes

Total megapixels

2 MP

Sample rate

48 kHz

Signal-to-Noise Ratio (SNR)

55 dB

Audio formats supported

AAC-LC, ADPCM, G.711, G.726, LPCM, PCM

Audio detection

Yes

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Streaming method

Multicast

Ethernet LAN

Yes

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR

ROM capacity

2048 MB

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Flash memory

8192 MB

Terminal block port

Yes

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Connectivity technology

Wired

Alert notification type

E-mail

Intelligent Video Surveillance (IVS) system features

Human detection, Line crossing detection, Moving object, Vehicle detection

Video motion detection

Yes

Active tampering alarm

Yes

Password protection

Yes

Pixel counter

Yes

Digest authentication

Yes

Remotely operated

Yes

Power source type

PoE

Power consumption (max)

51 W

Power consumption (typical)

12.6 W

DC-in jack

Yes

Certification

UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM

Operating temperature (T-T)

-40 - 60 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 100%

Storage relative humidity (H-H)

5 - 95%

Width

183 mm

Depth

411 mm

Height

183 mm

Weight

3.2 kg

Compliance certificates

REACH, RoHS

Number of cameras

1

Manual

Yes

Cables included

LAN (RJ-45)

Doesn't contain

PVC/BFR

Compliance certificates

REACH, RoHS

Doesn't contain

PVC/BFR
