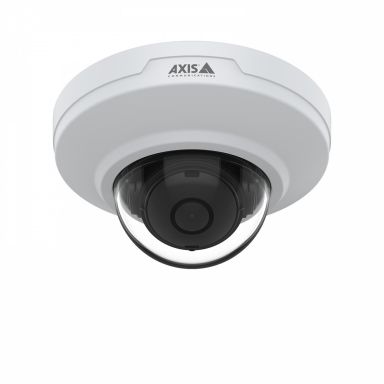

Axis 02375-001 security camera Dome IP security camera Indoor 3840 x 2160 pixels Ceiling/wall

Infrared (IR) cut-off filter

Yes

Number of languages

18

Languages support

Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese

PTZ modes

Digital PTZ

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Indoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

IK code

IK08

Form factor

Dome

Product colour

White

Mounting type

Ceiling/wall

Protection features

Dust resistant, Impact resistant, Water resistant

International Protection (IP) code

IP42

Housing material

Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Minimum illumination

0.25 lx

Tilt angle range

0 - 80°

Pan range

0 - 175°

Angle of rotation

175°

Camera shutter speed

1/71500 - 1/5 s

Lens viewing angle, horizontal

109°

Lens viewing angle, vertical

56°

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Number of sensors

1

Focal length range

2.9 mm

Night vision

Yes

Image quality adjustment

Brightness, Contrast, Sharpness

Privacy masking

Yes

Video compression formats

H.264, H.265, M-JPEG, MPEG4

Maximum resolution

3840 x 2160 pixels

Frame rate

15 fps

Total megapixels

8 MP

Audio system

2-way

Bluetooth

No

Networking standards

IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Quality of Service (QoS) support

Yes

Number of users

1 user(s)

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Internal memory

2048 MB

Flash memory

512 MB

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Video motion detection

Yes

IP address filtering

Yes

HTTPS encryption

Yes

Password protection

Yes

Pixel counter

Yes

Digest authentication

Yes

Network access storage (NAS)

Yes

Power source type

PoE

Power consumption (max)

4.2 W

Power consumption (typical)

3.6 W

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 95%

Height

56 mm

Diameter

10.1 cm

Weight

150 g

Number of cameras

1

Manual

Yes

Doesn't contain

BFR, PVC

Warranty period

5 year(s)

Video compression formats

H.264, H.265, M-JPEG, MPEG4
