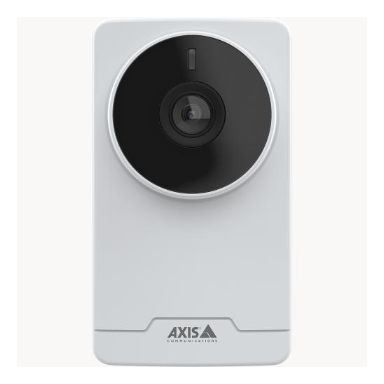

Axis M1055-L Box IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
In Stock
|
£290.29
£348.35 (Inc. VAT)
Axis M1055-L Box IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Performance
Infrared (IR) cut-off filter
Yes
Number of languages
12
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Type
IP security camera
Connectivity technology
Wired
Placement supported
Indoor & outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Certification
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Design
Form factor
Box
Product colour
White
Mounting type
Ceiling/wall
LED indicators
Yes
Housing material
Aluminium, Plastic
Camera
Minimum illumination
0.03 lx
Camera shutter speed
1/19000 s
Lens viewing angle, horizontal
103°
Lens viewing angle, vertical
55°
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 2.9 mm (1 / 2.9")
Number of sensors
1
Lens system
Number of lenses
1
Fixed focal length
3.16 mm
Night vision
Night vision
Yes
Video
Image quality adjustment
Brightness, Colour depth, Contrast, Saturation, Sharpness
Text caption overlay
Yes
Privacy masking
Yes
Bit rate control
Variable Bit Rate (VBR)
Video compression formats
AVC, H.264, H.265, HEVC, M-JPEG
Maximum resolution
1920 x 1080 pixels
Supported graphics resolutions
320 x 240, 640 x 360, 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes
1080p
Frame rate
30 fps
Video streaming
Yes
Video intelligence analytic
Yes
Network
Networking standards
IEEE 802.1x
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, MQTT v3.1.1, Syslog, Link-Local-Adresse (ZeroConf)
Storage
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash), MicroSDHC
Flash memory
512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Security algorithms
EAP-TLS, HTTPS, SNMP
IP address filtering
Yes
Power
Power source type
PoE
Power consumption (max)
4.3 W
Power consumption (Power over Ethernet (PoE))
4.3 W
Power consumption (typical)
2.2 W
DC output voltage
12
DC output current
2.5 A
Certificates
Certification
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
60 mm
Depth
93 mm
Height
105 mm
Weight
137 g
Packaging content
Number of cameras
1
Other features
Video compression formats
AVC, H.264, H.265, HEVC, M-JPEG
