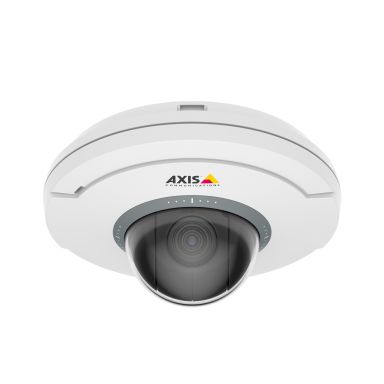

Axis 02345-001 security camera Dome IP security camera Indoor 1280 x 720 pixels Ceiling/wall
In Stock
|
£542.34
£650.81 (Inc. VAT)
Axis 02345-001 security camera Dome IP security camera Indoor 1280 x 720 pixels Ceiling/wall
Performance
Number of languages
12
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Processor model
ARTPEC-7
PTZ modes
Digital PTZ
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Indoor
Day/night mode
Yes
Certification
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,
VCCI Class A CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 IEC/EN 60529 IP51 NIST SP500-267
Design
Form factor
Dome
Product colour
White
Mounting type
Ceiling/wall
International Protection (IP) code
IP51
Housing material
Polyvinyl chloride (PVC)
Camera
Minimum illumination
0.1 lx
Tilt angle range
0 - 90°
Tilt speed
100 °/sec
Pan range
-179 - 179°
Pan speed
100 °/sec
Camera shutter speed
1/17000 - 2 s
Camera pan control
Yes
Camera tilt control
Yes
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Number of lenses
1
Auto focus
Yes
Zoom capability
Yes
Optical zoom
5x
Digital zoom
12x
Focal length range
2.2 - 11.0 mm
Video
Privacy masking
Yes
Digital Wide Dynamic Range (DWDR)
Yes
Bit rate
Configurable bit rate
Video compression formats
H.264, H.265
Maximum resolution
1280 x 720 pixels
Video formats supported
M-JPEG
Supported video modes
720p
Frame rate
60 fps
Video streaming
Yes
Total megapixels
1 MP
Video recording
Yes
Audio
Built-in microphone
Yes
Audio system
1-way
Audio formats supported
AAC-LC, ADPCM, LPCM, OPUS, PCM
Audio detection
Yes
Network
Bluetooth
No
Networking standards
IEEE 802.3af
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Storage
Card reader integrated
Yes
Built-in HDD
No
Internal memory
1024 MB
Flash memory
512 MB
Ports & interfaces
Connectivity technology
Wired
Security
Alert notification type
E-mail
Video motion detection
Yes
Security algorithms
EAP-TLS, HTTPS, SNMP
IP address filtering
Yes
HTTPS encryption
Yes
Active tampering alarm
Yes
Password protection
Yes
Power
Power source type
PoE
Power consumption (max)
9.3 W
Power consumption (typical)
4.2 W
Certificates
Certification
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,
VCCI Class A CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 IEC/EN 60529 IP51 NIST SP500-267
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-30 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Length
63 mm
Diameter
13 cm
Weight
380 g
Packaging content
Number of cameras
1
Mounting kit
Yes
Manual
Yes
Other features
Video compression formats
H.264, H.265
Logistics data
Harmonized System (HS) code
85258900
