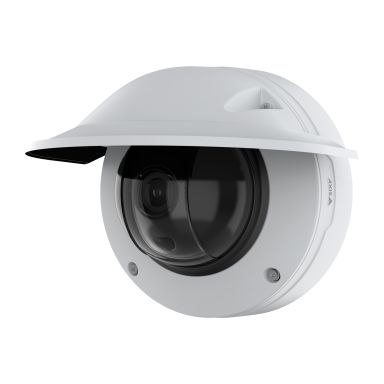

Axis 02225-001 security camera Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall
In Stock
|
£1475.29
£1770.35 (Inc. VAT)
Axis 02225-001 security camera Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall
Performance
Infrared (IR) cut-off filter
Yes
Number of languages
12
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
PTZ modes
Digital PTZ
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Indoor & outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Certification
CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035,
EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,
KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,
VCCI Class A
Design
Weatherproof
Yes
IK code
IK10+
Form factor
Dome
Product colour
White
Mounting type
Ceiling/wall
International Protection (IP) code
IP66
Camera
Minimum illumination
0.07 lx
Tilt angle range
-43 - 80°
Camera shutter speed
1/66500 - 2 s
Camera pan control
Yes
Camera tilt control
Yes
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 1.2 mm (1 / 1.2")
Number of sensors
1
Lens system
Number of lenses
1
Zoom capability
Yes
Focal length range
6.2 - 12.9 mm
Night vision
Night vision
Yes
LED type
IR
Video
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Privacy masking
Yes
Maximum resolution
3840 x 2160 pixels
Video formats supported
H.264, H.265
Frame rate
60 fps
Video streaming
Yes
Total megapixels
8 MP
Video recording
Yes
Audio
Built-in microphone
Yes
Audio formats supported
AAC-LC, G.711, G.726, OPUS
Audio detection
Yes
Network
Bluetooth
No
Networking standards
IEEE 802.3at
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Wi-Fi
No
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory
2048 MB
Flash memory
8194 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Alert notification type
E-mail
IP address filtering
Yes
HTTPS encryption
Yes
Active tampering alarm
Yes
Pixel counter
Yes
Human and vehicle targets classification
Yes
Power
Power source type
PoE
Power consumption (max)
23 W
Power consumption (typical)
9 W
Certificates
Certification
CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035,
EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,
KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,
VCCI Class A
Operational conditions
Operating temperature (T-T)
-50 - 60 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Height
124 mm
Diameter
18.3 cm
Weight
2.1 kg
Packaging content
Number of cameras
1
Mounting kit
Yes
Mounting brackets included
Yes
Manual
Yes
Drilling template included
Yes
